Integrated 13.56MHz ReaderWriter - RX4100/RX5100
Features
LAN Applicable
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- RX4100/RX5100 Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RX4100:RX-TPIC tag RX5100:ISO/IEC15693 compliant product
- Applicable Antenna
- Built-in 1ch Antenna
- Function
- LED, Buzzer
- Host I/F
- TCP/IP (RJ-45)
- Power, Voltage
- DC5V (Dedicated AC Adapter)
- Consumption electric current at operation
- MAX 300mA
- Mass
- 250g
- External form size
- 120x150x33mm
- Reception/Communication distance
- COB tag: from 20mm, Card(*2):from 30mm
- Option
- RS-232C/USB
- Accessory
- AC Adapter
- *1: Consultation required
- *2:RX-TP
13.56MHz Ultra Small Type Module - RX47A11(RX47X11)
Features
Ultra small type
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RX-TPIC tag, ISO/IEC15693 compliant products
- Applicable Antenna
- Built-in 1ch Antenna
- Function
- LED
- Host I/F
- TTL
- Power, Voltage
- DC5V
- Consumption electric current at operation
- MAX 150mA
- Mass
- 3g(*2)
- External form size
- Module: 30x25mm, Model body BOX: 5-x75x20mm, Model IF-BOX: 120x60x25mm
- Reception/Communication distance
- RXTP3 card: from 15mm, RXTP4 tag/COB TAG: from 10mm, 15693 Card/Label large(*3) : from 20mm, 15693 label small (*3)
- Option
- I/F Board type number RS-232C:RZ47X11-EP00 USB:RZ47X11-EP11 LAN:RZ47X11-EP22
- Accessory
- Model Kit accessory: IF board, cable for connection, AC adapter, model soft, case, sample tag
- *1:Consultation required
- *2:Body board only
- *3:I-Code SLI
13.56MHz 4ch Module - RX47X21
Features
Multi Application corresponding type
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RX-TPIC tag ISO/IEC15693 compliant product
- Applicable Antenna
- Built-in 1ch antenna, capable to correspond to externally added 3ch(*4)
- Function
- LED, Buzzer
- Host I/F
- TTL/RS-232C/USB(*4)
- Power, Voltage
- DC5V or USB Bus Power
- Consumption electric current at operation
- MAX 150mA
- Mass
- 9g(*2)
- External form size
- 72x42mm
- Reception/Communication distance
- RXTP3 card: from 30mm, RXTP4 tag/COB TAG: from 15mm, 15693 Card/Label large(*3): from 50mm, 15693 label small (*3) :from 30mm
- Option
- Externally added antenna external form: 20x60mm 40x40mm
- Accessory
- • Model Kit accessory: USB cable, model soft, case, sample tag
- *1:Consultation required
- *2:Body board only
- *3:I-Code SLI
- *4:RX47A21 antenna + I/F specification and type number
| Built-in 1ch | Built-in 1ch + Externally added 3ch | |
| TTL | RX47A21 | RX47A41 |
| RS-232C | RX47221 | RX47241 |
| USB | RX47U21 | RX47U41 |
13.56 MHz NFC-TP ReaderWriter Module - YRMER110
Features
RXTP (YRSC Original) & NFC also serve as Multi readerwriter
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- －
- Applicable RFID
- RX-TPIC tag, ISO/IEC15693 compliant products
- Applicable Antenna
- Φ84mm
- Function
- －
- Host I/F
- CF Card I/F
- Power, Voltage
- DC5V
- Consumption electric current at operation
- MAX 150mA
- Mass
- 20g
- External form size
- 42x55x8mm
- Reception/Communication distance
- RXTP3 Card: from 70mm, 15693 Card: from 80mm
- Option
- Recommendation PDA Sharp manufactured: RZ-1501A, RZ1502A (Bar code)
- Accessory
- －
- *For RX46X00, License/patent of SOFEL Co., Ltd. was used. (Operating temperature: 0-50℃ , Operating Humidity: 20-80%)
Coin Type Tag - RX4100/RX5100
Features
Superior heat-resistance, Environmental resistance
- Size
- Φ30x2.7mm (MAX)/Φ18x2.7mm (MAX)
- Weight
- 2g/1.4g
- Storage Temperature
- -10～150℃
- Operating Temperature
- 0～70℃
Card (RX-TP) - NN73100B-TMD33/34
Features
ISO standard card/Printable
- Size
- 85.6x54x0.76mm
- Weight
- 5.4g
- Storage Temperature
- -10～50℃
- Operating Temperature
- 0～50℃
COB Tag - NN73100B-TMD21
Features
Inexpensive price/Small Type, Thin Type
- Size
- 39x10x0.6mm
- Weight
- 0.3g
- Storage Temperature
- 0～50℃
- Operating Temperature
- 0～50℃
WCSP Tag - NN731002-TMD21
Features
Small Type, Thin Type
- Size
- 40x16x1.6mm
- Weight
- 0.3g
- Storage Temperature
- -10～50℃
- Operating Temperature
- 0～50℃
WCSP Tag - NN731002-TMD22
Features
Small Type, Thin Type
- Size
- 13x12x1.6mm
- Weight
- 0.3g
- Storage Temperature
- -10～50℃
- Operating Temperature
- 0～50℃
125kHz Module - RX2101
Features
125kHz module type
- Frequency
- Sending:125kHz/117.65kHz Receiving:62.5kHz
- Modulation method
- Sending:FSK Receiving:ASK
- Data transfer speed
- 2kbps/4kbps
- Anti-collision
- Applicable
- Applicable RFID
- RX-3S
- Applicable Antenna
- 1ch
- Function
- －
- Host I/F
- RS-232C
- Power, Voltage
- DC5V
- Consumption electric current at operation
- 120mA
- Mass
- －
- External form size
- 90x60x10mm
- Reception/Communication distance
- class="col-md-6"LED Tag: From 20mm 30φ coin tag
- Option
- 50x15mm Antenna external form: 50X15mm
- Accessory
- －
Integrated model 13.56MHz ReaderWriter - RX4100/RX5100
Features
LAN Application Type
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- RX4100/RX5100 Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- • RX4100:RX-TPIC Tag RX5100: ISO/IEC15693 compliant product
- Applicable Antenna
- Built-in 1ch Antenna
- Function
- LED, Buzzer
- Host I/F
- TCP/IP (RJ-45)
- Power, Voltage
- DC5V (Dedicated AC Adapter)
- Consumption electric current at operation
- MAX 300mA
- Mass
- 250g
- External form size
- 120x150x33mm
- Reception/Communication distance
- COB Tag: From 20mm, Card(*2)
- Option
- RS-232C/USB
- Accessory
- AC Adapter
- *1:Consultation required
- *2:RX-TP
13.56MHz Ultra-microminiature type module - RX47A11(RX47X11)
Features
Ultra microminiature
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RX-TPIC tag ISO/IEC15693 compliant product
- Applicable Antenna
- Built-in 1ch Antenna
- Function
- LED
- Host I/F
- TTL
- Power, Voltage
- DC5V
- Consumption electric current at operation
- MAX 150mA
- Mass
- 3g(*2)
- External form size
- Module: 30x25mm Model Body Box: 50x75x20mm Model IF-BOX:120x60x25mm
- Reception/Communication distance
- RXTP3 card: from 15mm RXTP4 tag/COB tag: from 10mm 15693 card/label large (*3) :from 20mm 15693 label small (*3)
- Option
- I/F board type number RS-232C:RZ47X11-EP00 USB:RZ47X11-EP11 LAN: RZ47X11-EP22
- Accessory
- Model Kit accessory: IF board, cable for connection, AC adapter, model soft, case, sample tag
13.56MHz 4ch module - RX47X21
Features
Multi Application corresponding type
- Frequency
- 13.56MHz
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer speed
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RX-TP3/TP4 ISO/IEC15693 compliant product
- Applicable Antenna
- Built-in 1ch Antenna 3ch External support available(*4)
- Function
- LED, Buzzer
- Host I/F
- TTL/RS-232C/USB(*4)
- Power, Voltage
- DC5V orUSB bus power
- Consumption electric current at operation
- MAX 150mA
- Mass
- 9g(*2)
- External form size
- 72x42mm
- Reception/Communication distance
- • RXTP3 card: from 30mm RXTP4 tag/COB tag: from 15mm 15693 card/label large (*3): from 50mm 15693 label small (*3): from 30mm
- Option
- External attached antenna external form: 20x60mm 40x40mm
- Accessory
- • Model Kit accessory: USB cable, model soft, case, sample tag
RXTP Ultra small type module model kit - RX47X11
Features
- Increased easy assemble to small type products with integrated type module of ultra small size RW controller & antenna
- Support verification of host I/F (RS-232C/USB/LAN) with model I/F-BOX
- Capable to verify the auto-recognition function of RXTP tag & 15693 compliant tag
Components
- Module body(1)
- Model I/F-BOX (1)
- Dedicated connection cable (1)
- USB cable(1)
- AC Adapter (1)
- Model soft [.exe] (1)
- Operation Manual (1)
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data Transfer method
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RXTPIC tag (Original) ISO/IEC15693 compliant products
- Applicable Antenna
- Built-in 1ch Antenna
- Host I/F
- RS-232C/USB/LAN(I/F-BOX for switching/conversion (*2)
- Power, Voltage
- DC5V (Model I/F-BOX for switching/conversion)
- Consumption electric current at operation
- MAX 150mA (Module single unit)
- External form size module
- 30x25mm
- External form size model I/F-BOX
- 120x60x25mm
- *1:Consultation required
- *2:UART(TTL Fixed) for between ReaderWriter⇔IF-BOX
RXTP4ch Module Model Kit - RX47U21
Features
- Materialized realization of compact RW and easy assembly into equipment with integrated module of business card sized RW controller & antenna
- Max up to 4ch controllable with adding 3ch external antenna
- Capable to verify auto-recognition function of RXTP tag and 15693 compliant tag
Components
- Module body (1)
- Externally attached antenna (3)
- Dedicated USB cable (1)
- Antenna cable (3)
- Model Soft [.exe] (1)
- Operation Manual (1)
- Modulation method
- Sending:ASK Receiving:BPSK/ASK
- Data transfer method
- Sending:106kbps/26.48kbps Receiving:106kbps/6.62(26.48)kbps
- Anti-collision
- Applicable (*1)
- Applicable RFID
- RXTPIC tag (Original), ISO/IEC15693 Compliant products
- Applicable Antenna
- Built-in 1ch antenna + Externally added 3ch antenna
- Host I/F
- USB (For mass production, select from TTL/RS-232C/USB)
- Power, Voltage
- USB Bus Power
- Consumption electric current at operation
- MAX 150mA (Module Unit body)
- External form size module
- 72x42mm
- Externally added antenna
- 20x60mm/40x40mm
- Externally added antenna cable length 25cm/44cm
- *1:Consultation required
LED Tag - RW2-TMD23
Features
- Built-in RX25 Chip
- Actualized LED lighting by no-electric source
- Actualized thin type tag
- Actualized close spacing allocation use of tag with directivity antenna
- Can support the implementation of advanced search systems
- Capable to support development of fixed antenna, handy machine, dedicated folder, and shelf with antenna installed, etc.
Application fields
- File management system
- Document management system
- Individual management system
- etc. Process management system
- Size
- 50x20x3.3mm
- Weight
- 3.5g
- Number of LED
- 1 unit
- LED color
- 1 Red
- Memory size
- 128 byte(100,000-write warranty)
- Communication distance
- <=30mm(*This defers with antenna and environment to use.)
- Operating temperature
- 0℃～50℃
- Applicable ReaderWriter
- RX31230(4ch)、RX2101(Module)
Coin Type Tag
Features
- Superior heat-resistance, Environmental resistance
- Size
- Φ30x2.7mm (MAX)/Φ18x2.7mm (MAX)
- Weight
- 2g/1.4g
- Storage Temperature
- -10～150℃
- Operating Temperature
- 0～70℃
125kHz ReaderWriter - RX31230
Features
- Performance type
- Frequency
- Sending:125kHz/117.65kHz Receiving:62.5kHz
- Modulation method
- Sending:FSK Receiving:PSK/ASK
- Data transfer speed
- 2kbps/4kbps
- Anti-collision
- Applicable
- Applicable RFID
- RX-2S/3S
- Applicable Antenna
- RX2100-A001 Standard 1ch (MAX 4ch:Option)
- Function
- LED, Buzzer
- Host I/F
- RS-232C (/USB /LAN)
- Power, Voltage
- AC100V
- Consumption electric current at operation
- 300mA (At time of corresponding to 1ch)
- Mass
- 815g+780g (at time of corresponding to 1ch)
- External form size
- • (at time of corresponding to 1ch) WR:270x220x82mm Antenna: 270x220x50mm
- Reception/Communication distance
- LED tag: from 50mm, 30φ coin tag ～80mm
- Option
- • 4ch applicable board, CPU expansion board, Reception/Transmission Protocol specification
- Accessory
- • AC Power cable, RS232C cable, Model soft, Sample tag
RX2S Starter kit - RX2100
Features
- Dedicated for RX2S/3S chip built-in tag
- Capable to use as soft (ware) development of RX2S/3S chip
- Actualization of high security by equipping CPU
- Multi-lead (Anti-Collision) function
- Capable to recognize multiple tag which exist in reception/transmission area
- Separate type of RW controller (body) and Antenna
- Capable to develop own antenna at customer side
Components
- RW controller (1)
- Antenna(1)
- Antenna cable 165cm (1)
- RS-232C cable (1)
- AC Power source cable(1)
- Model Soft[.exe] (1)
- Operation manual (1)
- Model Sample
- Carrier frequency
- Sending:125kHz/177.65kHz Receiving:62.5kHz
- Modulation method
- Sending:FSK Receiving:PSK
- Data transfer method
- 4kbps
- Anti-collision
- Applicable
- Applicable RFID
- RX2S/3S(Original)
- Host I/F
- RS-232C
- Power, Voltage
- AC100V
- Consumption electric current at operation
- MAX 20W
- RW body
- 270x220x82mm / 815g（External form size/weight）
- Antenna
- 270x220x50mm / 780g（External form size/weight）

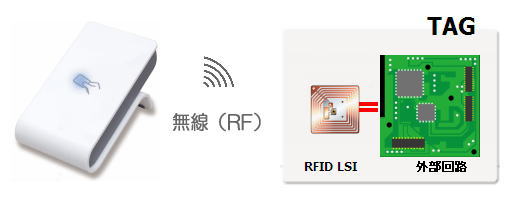

I/O Application - Corresponding to application using DUAL INTERFACE (RF/Contact) LSI
125KHz Band (RX3S)
- Contact part Communication Method:I2C
- Contact part Communication speed: 100Kbps
- Power supply for External circuit: 2.3V
- Direct access from ReaderWriter
13.56MHz(RXTP7)
- Contact part Communication method: I2C
- Contact part Communication speed: 100Kbps
- Direct access from ReaderWriter
